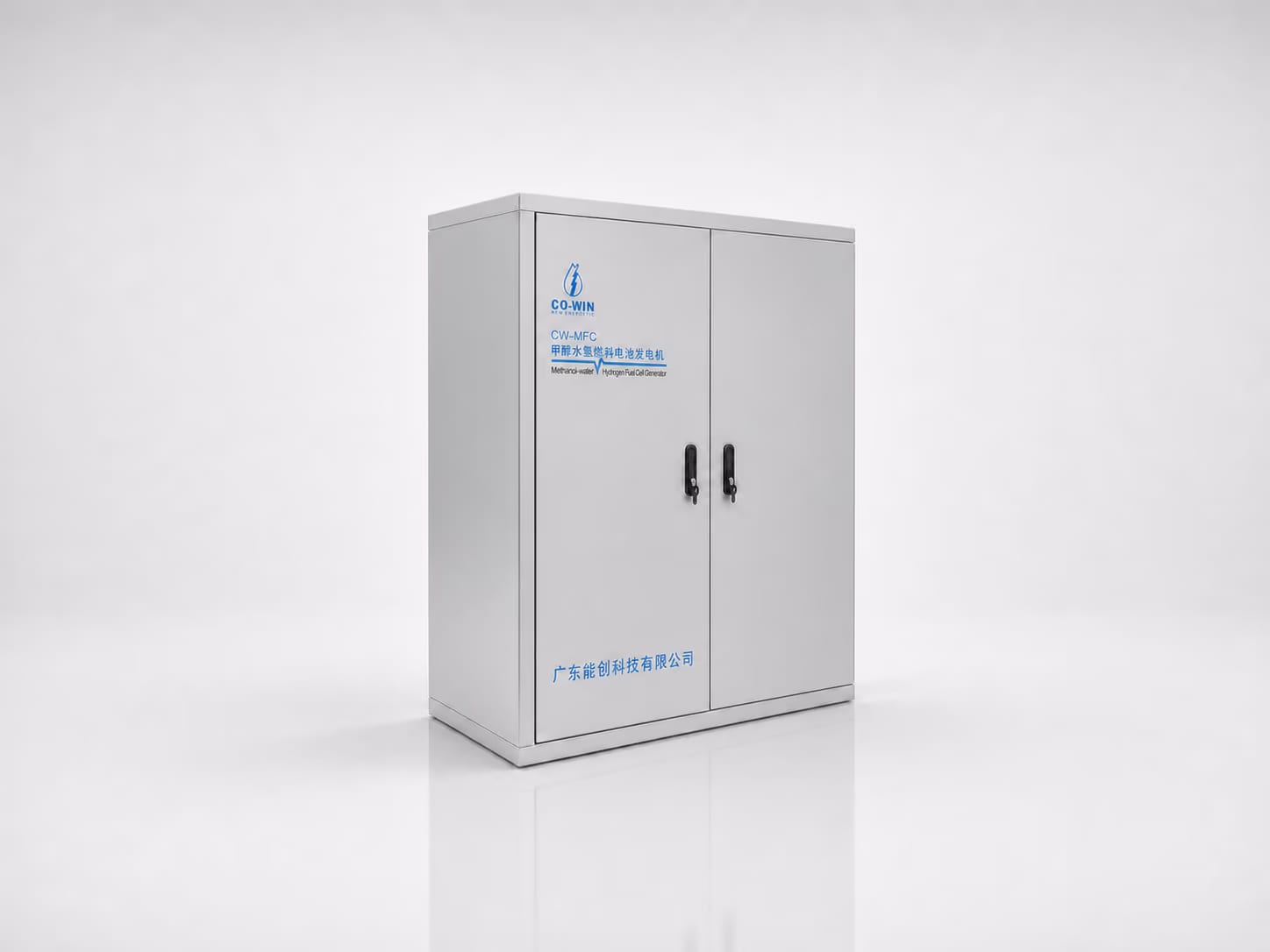

Methanol-Water Hydrogen Fuel Cell Generator
CW-MFC20
20 kW dual-cabinet power for demanding sites
A fully closed-loop methanol-water hydrogen fuel cell generator designed for reliable, long-life main and backup power in demanding indoor and outdoor applications.
Request product informationProduct data
Technical specifications
CW-MFC20 integrates methanol-water hydrogen production and fuel-cell generation in a dual-cabinet modular platform, with configurable electrical output and digital operation for demanding field deployment.
- Product model
- CW-MFC20
- Rated net power
- 15,000 W
- Peak net power
- 20,000 W
- Integrated fuel storage
- 100 L
- Dimensions
- W1800 × D900 × H2100 mm
- Output voltage
- -48 VDC (43.2–57.6 VDC), programmable; other DC voltages, 220 VAC and 380 VAC available on request
- System noise
- <85 dB @ 1 m
- Fuel mixture
- 62% methanol / 38% deionized water 1
- Fuel consumption
- 0.85 kg/kWh; approximately 1 L of fuel per kWh under stable 25°C laboratory conditions 2
- Cabinet protection
- IP55; suitable for outdoor environments with salt spray or frequent rainfall
- Data interfaces
- RS-485, CAN, Modbus, MQTT and J1939; custom protocols supported
- Ambient temperature
- -40°C to 60°C 3
- Control modes
- Touch LCD, Wi-Fi mobile app, 4G wireless remote control and PC host software
- Monitoring
- Wired and wireless monitoring with Aliyun IoT, dynamic alerts and data sampling
- Response time
- Millisecond-level interface response
Designed for operation
Closed-loop power with visibility built in.
The fully closed-loop architecture is paired with modular construction to support production, assembly and maintenance. Every connected unit can be monitored through Aliyun IoT services for operating data, alerts and diagnostics.
Modular reliability
A dual-cabinet modular solution designed to support long service life and straightforward production, assembly and maintenance.
Outdoor resilience
IP55 cabinet protection supports deployment in outdoor environments with salt spray or frequent rainfall.
Connected control
Control locally through the touch display, or remotely through Wi-Fi, 4G and PC software with programmable current limiting and parallel operation.
Application fit
Power wherever continuity matters.
01
Telecom main and backup power
02
Data centre backup power
03
Emergency power
04
Elevator backup power
05
Charging infrastructure
06
UPS and small-business backup
01
Methanol should meet IMPCA reference requirements, and deionized water should meet ASTM Type III requirements.
02
Fuel use is measured at 25°C under stable system output in a laboratory environment; actual site consumption may vary.
03
Below -5°C or above 40°C, auxiliary equipment is required and the system should operate at a reduced load.
